Product Sheet CG1425

Description

BACKGROUND PDK1 is a Ser/Thr protein kinase that activates at least 23 protein kinases belonging to the AGC family of protein kinases by phosphorylating their T-loops. PDK1 phosphorylated Thr308 of PKB that is required step for PKB activation. PDK1 possesses an N-terminal catalytic domain and a C-terminal PH domain. The latter binds with high affinity to the PtdIns (3,4,5)P3 and PtdIns (3,4)P2 second messengers that are generated by PI-3 kinase following stimulation of cells with growth factors. The only PDK1 AGC kinase substrates to also possess a PtdIns (3,4,5)P3/PtdIns (3,4)P2 binding PH domain are isoforms of PKB (also known as Akt). Much evidence indicates that the mutual binding of PKB and PDK1 to PtdIns (3,4,5)P3/PtdIns (3,4)P2 at the plasma membrane co-localizes these enzymes and is necessary for PKB to be activated by PDK1. In contrast, the other PDK1 AGC kinase substrates, including p70 ribosomal S6-kinase, serum- and glucocorticoid-responsive kinase, and p90 ribosomal S6 kinase, do not bind PtdIns (3,4,5)P3/PtdIns (3,4)P2 or possess PH domains. Instead, these kinases possess conserved PDK1 docking sites located in a C-terminal region known as the hydrophobic motif (HM). Growth factors and hormones lead to the phosphorylation of the hydrophobic motif of these AGC kinases, significantly enhancing their ability to interact with PDK1. The region on PDK1 that interacts with the hydrophobic motif of its substrates is termed the HM-pocket and is located on the N-terminal smaller lobe of the catalytic domain.1

PDK1 seems to exist in an active, phosphorylated configuration under basal conditions and appears to be refractive to additional activation and phosphorylation upon cell stimulation with agonists which activate PI-3 kinase. PDK1 itself is also an AGC kinase member and, like its substrates, requires to be phosphorylated at its T-loop (Ser-241) to be activated. In vivo, PDK1 is capable of autophosphorylation at Ser-241 by an intermolecular reaction and is thus constitutively phosphorylated at Ser-241. The structural analysis of the PDK1 kinase domain has revealed that, similar to what has been observed in other kinases, the phosphorylated Ser-241 residue forms key interactions coordinating and aligning important catalytic motifs such as the alphaC-helix of the N-terminal lobe.2 The alphaC-helix plays a key role in all kinases as it contributes crucial residues to coordinating ATP. More recently the structure of PKBbeta in the unphosphorylated, inactive state was reported to possess a completely disordered alphaC-helix. PDK1-mediated phosphorylation of PKBbeta and interaction of PKBbeta with its own hydrophobic motif (HM) led to ordering of this helix, resulting in PKB activation. This suggested a new regulatory alphaC-helix-dependent mechanism in PKB.  PDK1 is activated through interaction with its substrates too.3

It is controversial whether PDK1 translocates to the plasma membrane in response to growth-factor stimulation. One study reported that PDK1 translocated to the membranes of endothelial cells in response to platelet-derived growth factor (PDGF). PDK1 appears to be excluded from the nucleus in both stimulated and unstimulated cells. However, it was shown that PC-3 cells expressed phosphorylated and nonphosphorylated PDK-1 in the cytoplasm and nucleoplasm. In contrast, neuronal PDK-1 was located in the nucleoplasm and the phosphorylated form was located along the perinuclear region. Furthermore, it was reported that IGF-I transiently increased phosphorylation of neuronal PDK-1, resulting in its translocation to other cellular compartments.4

REFERENCES
1. Mora, A. et al: Semin. Cell Dev. Biol. 15:161-70, 2004
2. Casamayor, A. et al: Biochem. J. 342(Pt.2):287-92, 1999
3. Komander, D. et al: EMBO J. 23:3918-28, 2004
4. Alajajian, B,P. et al: Neuroreport  20:579-83, 2009

Products are for research use only. They are not intended for human, animal, or diagnostic applications.

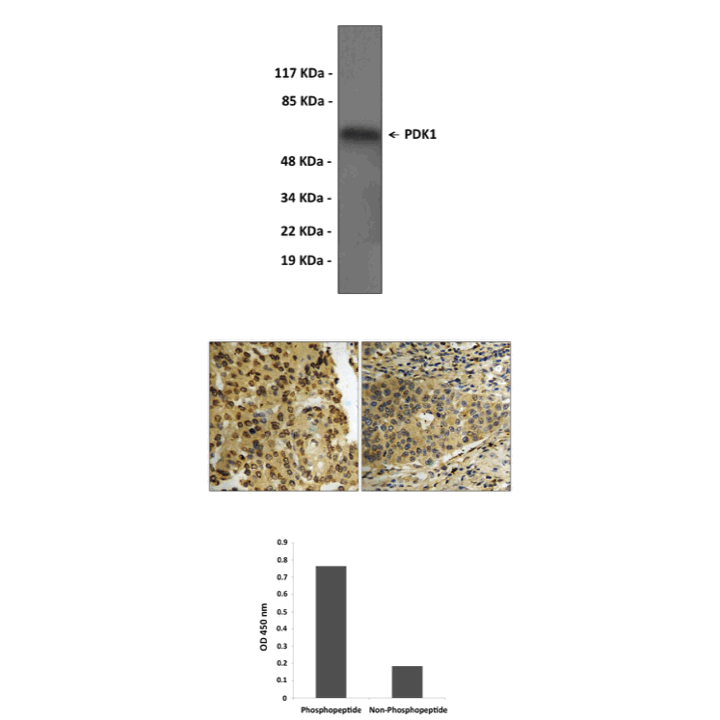

(Click to Enlarge) Top: Western blot analysis of extracts from HeLa cells and NIH-3T3 cells. Middle: Immunohistochemistry analysis of paraffin-embedded Human brain gliomas and Human breast carcinoma. Bottom: ELISA for Immunogen Phosphopeptide (left) and Non-Phosphopeptide (right).

Details

Cat.No.:
CG1425
Antigen:
Range AA230 to 259.
Isotype:
Rabbit IgG
Species & predicted
species cross-
reactivity ( ):
Human, Mouse, Rat
Applications &
Suggested starting
dilutions:*
WB                  1:500-1:1000
IP                    n/d
IHC                  1:50-1:100
ICC                  n/d
FACS               n/d
ELISA              1:20000
Predicted Molecular
Weight of protein:
63 kDa
Specificity/Sensitivity:
Detects endogenous PDK1 proteins without cross-reactivity without other family members.
Storage:
Store at -20°C, 4°C for frequent use. Avoid repeated freeze-thaw cycles.

*Optimal working dilutions must be determined by end user.

Products

Product Size CAT.# Price Quantity
Rabbit 3-Phosphoinositide Dependent Protein Kinase 1, Phospho-Ser241 Antibody: Rabbit 3-Phosphoinositide Dependent Protein Kinase 1, Phospho-Ser241 Antibody Size: 100 ul CAT.#: CG1425 Price: $384.00
